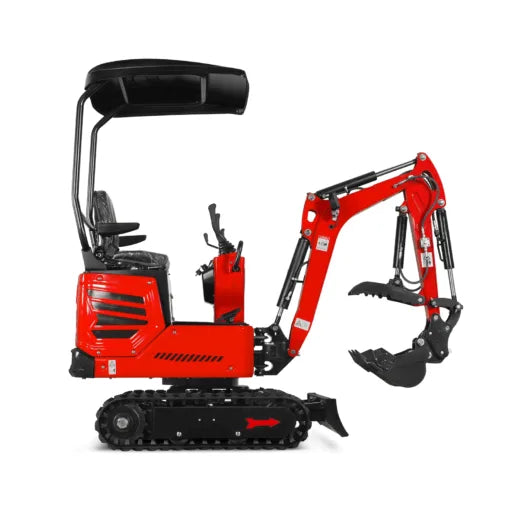

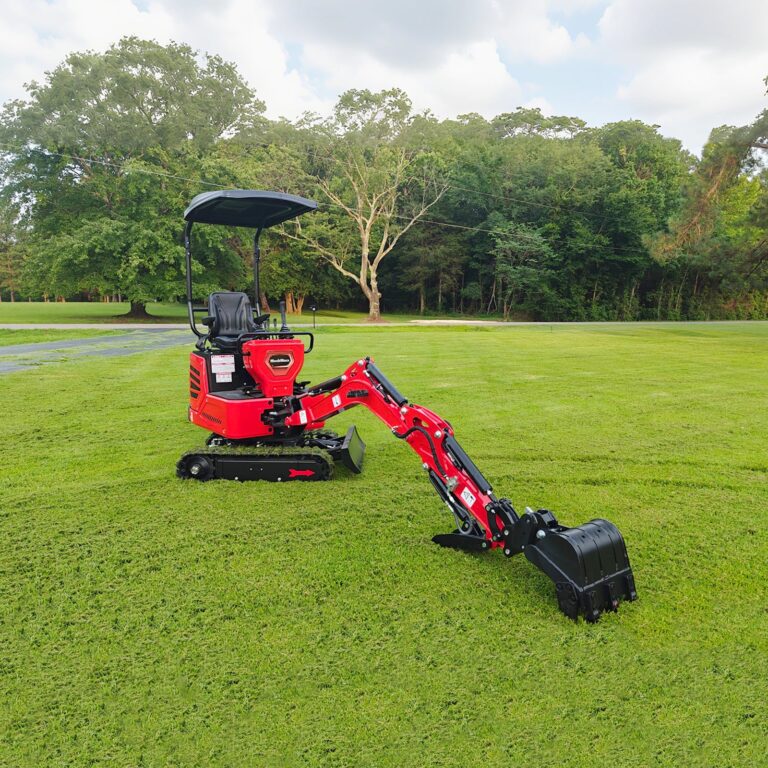

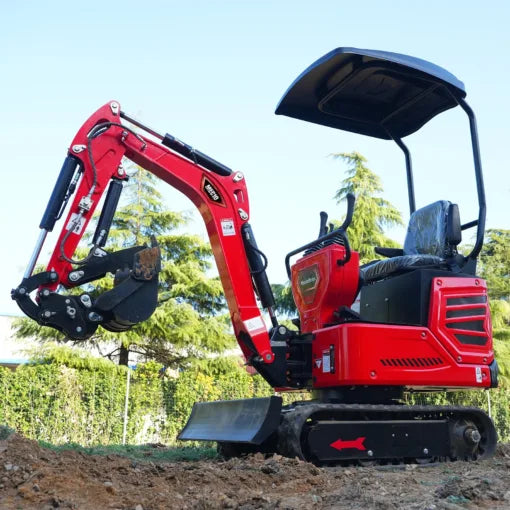

Mini Compact Excavator HONDA GX390 Engine, 65.7″ Max. Digging Depth, 1Ton, 2280 LBS Operating Weight, MEC10

$6,950.00
$6,950.00
-0%
Tax included. Shipping calculated at checkout.

Guaranteed safe checkout

  • American Express
  • Maestro
  • Mastercard
  • Visa

Product Description

Mini Compact Excavator HONDA GX390 Engine, 65.7″ Max. Digging Depth, 1Ton, 2280 LBS Operating Weight, MEC10
Mini Compact Excavator HONDA GX390 Engine, 65.7″ Max. Digging Depth, 1Ton, 2280 LBS Operating Weight, MEC10

$6,950.00

You Might Also Like

Standard Bucket Capacity 0.7 cu-ft Auxiliary Std Flow 5.7 gal/min
Standard Bucket Width 15 in Max. Tractive Force 3035 lbf
Max. Travel Speed 0.75 mile/h Arm Digging Force 1191 lbf
Slewing Speed 11 rpm Bucket Digging Force 1619 lbf
Max. Gradeability 30° Rated Lift Capacity 728 lb
Track Ground Pressure 5.1 psi Lift Radius 80 in
Hydraulic Oil Tank Capacity 3.96 gal Operating Weight 2280 lb
Operating Range
Max.Digging Radius On Ground 119 in Max. Vertical Digging Depth 63.3 in
Max. Digging Depth 65.7 in Min. Turning Radius 46.8 in
Overall Operating Height (Fully Raised) 111.8 in Max. Lifting Height Dozer Blade 5.9 in
Max. Digging Radius 121 in Max. Depth Dozer Blade 7.4 in
Max. Unloading Height 81.8 in

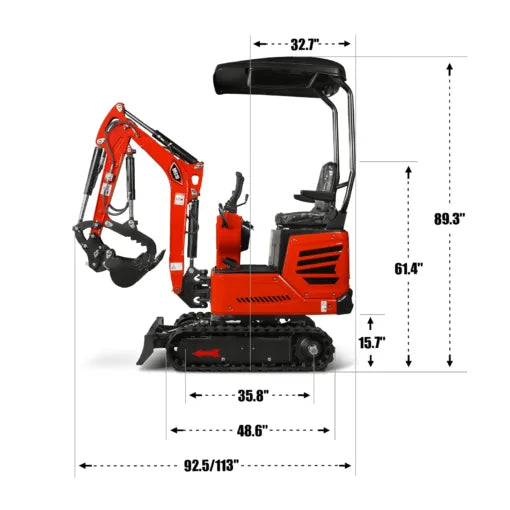

Main Dimensions
