MILLER MAXSTAR 161 S STICK WELDER (907709)

The new Miller Maxstar 161 welders now have a digital interface and feature a greater amperage range than their predecessor Maxstar 150 units. Machine setup is done in 3 easy steps – press the menu button to select your process, then hold the menu button for 1 second to access the user menu. The last step is turning the encoder to adjust your selected parameter.

The Maxstar 161 S models are not TIG capable.

New Features
• Digital meter interface
• Auto-line 120V and 240V power cords
• Pulse feature on STH models only
• Upgraded shoulder strap and handle
• Added space inside the X-Case

Quick Specs
• Stick Amperage Range: 120V – 20-90A | 240V – 20-160A
• Material Thickness: .020 – 3/16 Steel | 5/32″ Electrodes
• Duty Cycle: 120V – 30% at 90A | 240V – 20% at 160 amps
• Dims: 10.3 H x 5.6 W x 13.5 D
• Weight: 13lbs

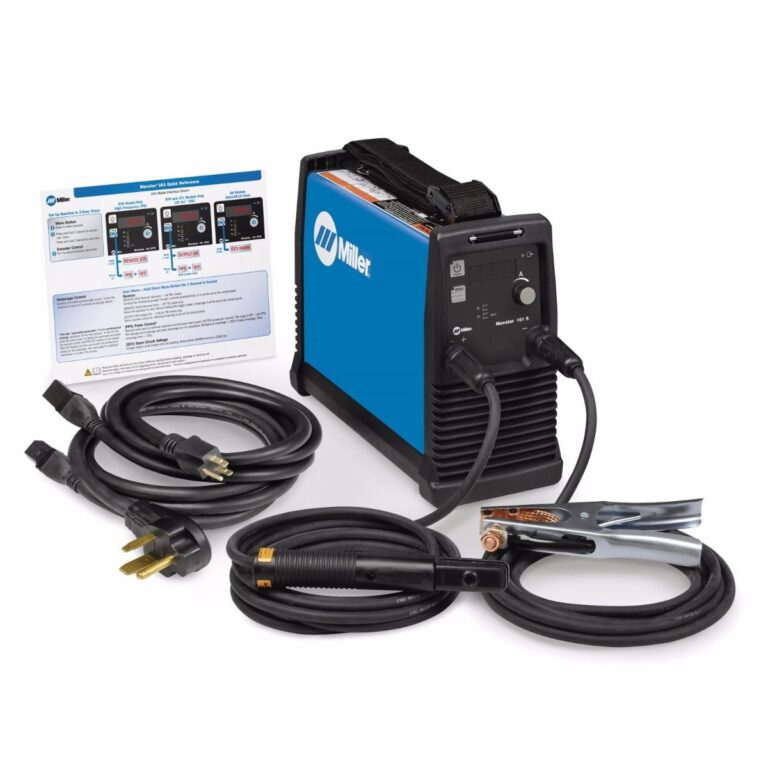

Includes
• Maxstar 161 S power source
• 6.5ft 120V and 240V power cords
• 13ft Stick
