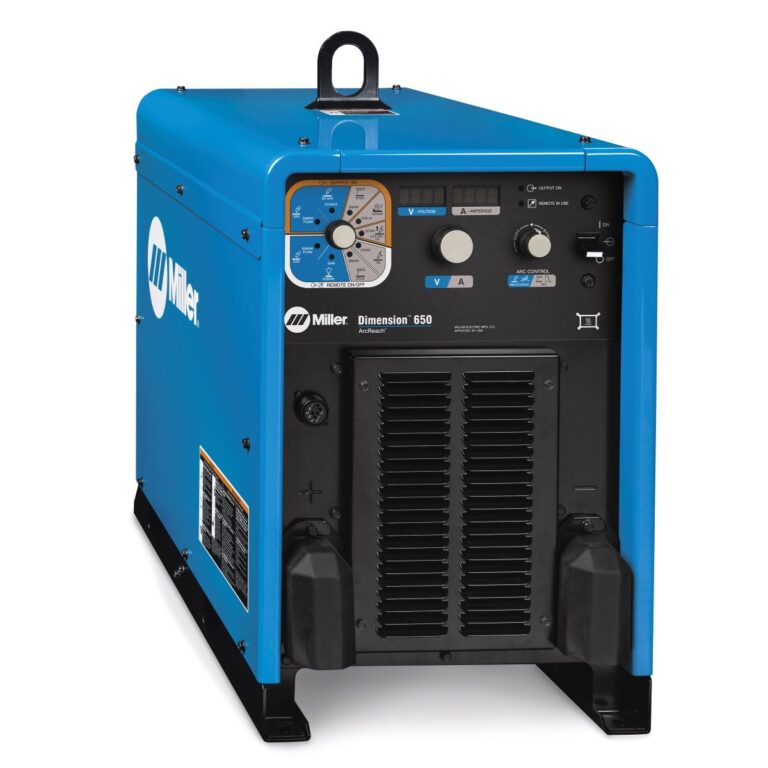

MILLER DIMENSION 650 MULTIPROCESS WELDER W/ARCREACH (575V) (907809)

The Miller Dimension 650 offers an unbeatable combination of durability, output, efficiency, and capability in a smaller package. This unit boasts a 100 percent duty cycle at 650 amps, offering excellent stick, lift-arc TIG, and short-arc MIG capabilities. The Dimension 650 requires 3-Phase Power and 575 Volt service.

Features
• All-Aluminum Construction – helps the machine resist corrosion for longer life
• Exclusive Protection – input indicator protects machine from “dirty” power
• Wind Tunnel Technology – protects electrical components from dirt, dust, debris
• Fan-On-Demand – operates only when needed, reducing noise and power consumption
• Smaller and Lighter – 3.5 times lighter than the Dimension 652 and 40 percent smaller
• Power Efficient – draws only 35 amps using 575V power (32 percent fewer amps than previous model)

Advantages
• High-Quality Performance – significantly improved quality of arc in all processes
• Gouging Mode – provides 800 amps of usable power, 650 amps at 100 percent duty cycle
• Three Wire Modes – solid wire, flux-cored, sub-arc
• Arc
