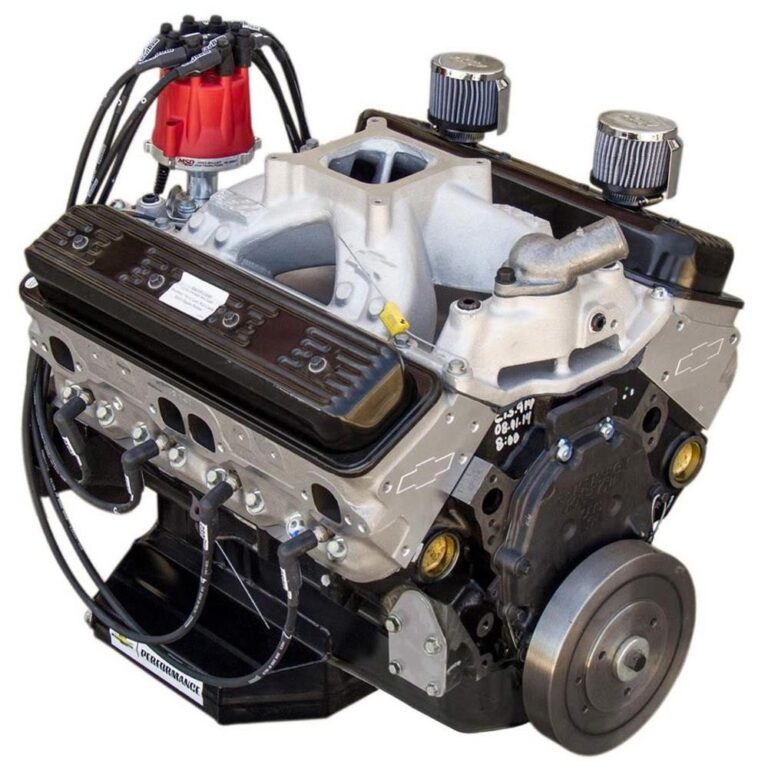

CT400 IMCA-Sealed 604 Crate Engine

The 604 crate engine includes a bulletproof bottom end, anchored by a forged steel crankshaft and hypereutectic pistons. The 23-degree, Fast Burn aluminum heads enable tremendous power in the small-block V-8 because of a unique chamber design that quickly and completely burns all of the air/fuel mixture – giving you maximum power. With the CT400 racing engine under the hood of your Modified or Late Model, you’ll put a “fast burn” on the competition.

• Dyno-verified horsepower and torque
• Piston rings are broken-in using a proprietary dyno program
• Lash and timing are individually tuned
• MSD Pro-Billet distributor is installed & timed
• Engine is ready to race, right out of the crate
• IMCA-sealed for equal competition
• Popular in Modified and Late Model classes*
• 400 HP @ 5500 RPM
• 400 ft. lbs. of torque @ 4500 RPM
• 4.00″ x 3.48″ bore x stroke
• 9.6:1 compression ratio
• 92 octane recommended fuel
• 4-bolt main caps
• Cam lift: .474″ intake / .510″ exhaust
• Cam duration @ .050″: 208° intake / 221° exhaust
• 112° lobe separation
• 1.5:1 ratio aluminum roller rocker arms
• 2.00″ Intake / 1.55″ Exhaust valves

Features

Includes:

• Fully assembled long block
• Black steel valve covers w/
