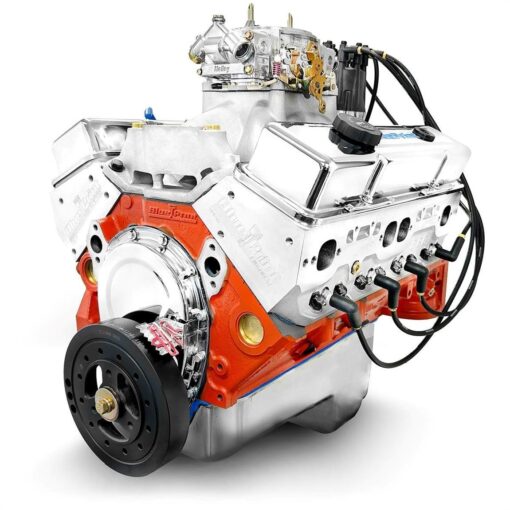

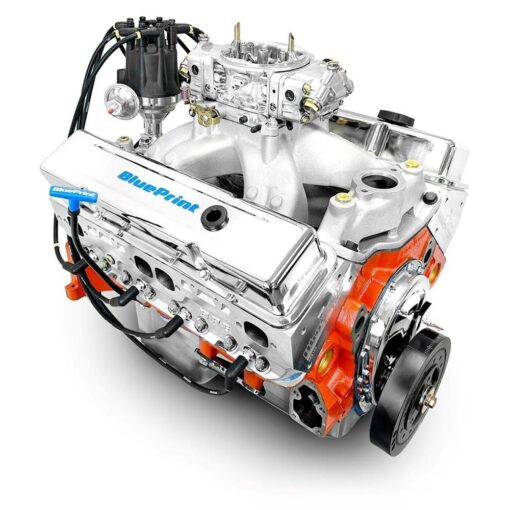

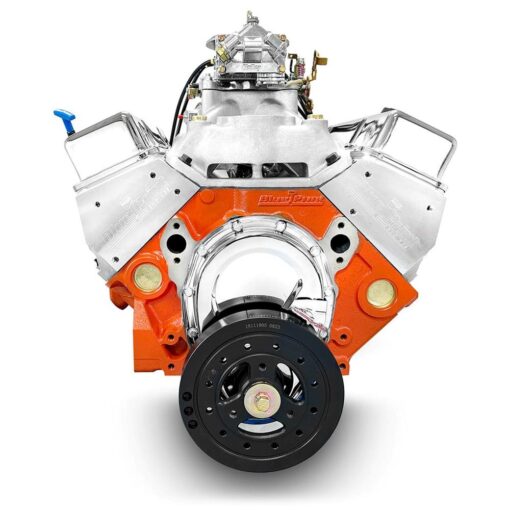

BluePrint PS4272CTC1 SBC 427 Pro Carb Base Dressed Engine 540HP

Horsepower / Torque: 540 Horsepower / 535 ft. lbs. Torque Compression Ratio: 10.0:1 Aluminum Heads Hydraulic Roller Cam Forged Crank Forged Pistons Block: High Strength Cast Iron Block Drilled and Tapped for Clutch Linkage Mech Fuel Pump Provision: Yes Passenger Side Dipstick 1-Piece Rear Main Seal 4-Bolt Main 4.125" Bore Rotating Assembly: Forged Crankshaft 4.000" Stroke Forged 6.000" Connecting Rods Forged Pistons Internally Balanced Front and Rear Cylinder Heads: BluePrint Aluminum Cylinder Heads – HP8103 64cc Chamber 2.08" Intake / 1.60" Exhaust Valves 220cc Intake / 67cc Exhaust Runners Cam Specs: Hydraulic Roller .577 Intake / .577 Exhaust Lift 240 Intake / 248 Exhaust Duration @.050-112 Degree Lobe Separation Also Includes: Holley 850cfm Double Pumper Carburetor (Manual Choke) – BPP04781S Pro Series Ready Run Distributor – BPP3503BK Intake Manifold – BPP427454INT Valve Covers – BPP9518 Spark Plugs and Wires Harmonic Balancer Timing Cover Oil Pan

Highlights

• GM Small Block Compatible 427 c.i. Pro Series Engine
• 540 Horsepower
• Base Dressed
• Carbureted

Specifications

• Engine Displacement: 427 cu. in.
• Compression Ratio: 9.2:1
• Camshaft Type: Hydraulic Roller
• Cylinder Head Material: Aluminum
• Camshaft Duration (.050 in): 239° intake / 255° exhaust
• Camshaft Lift (in): .624 intake
