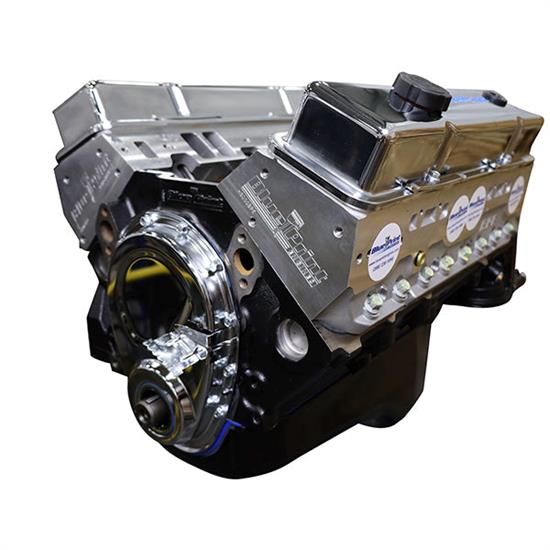

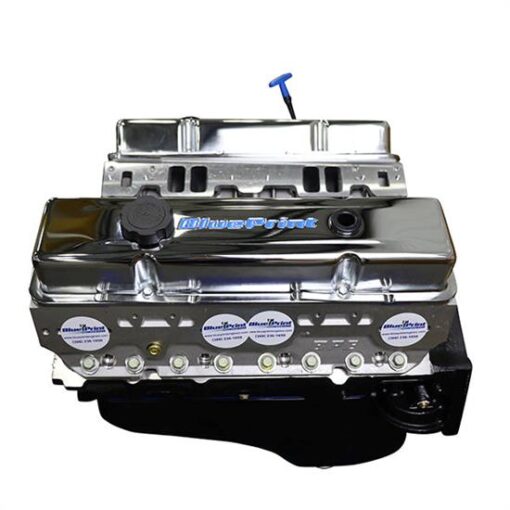

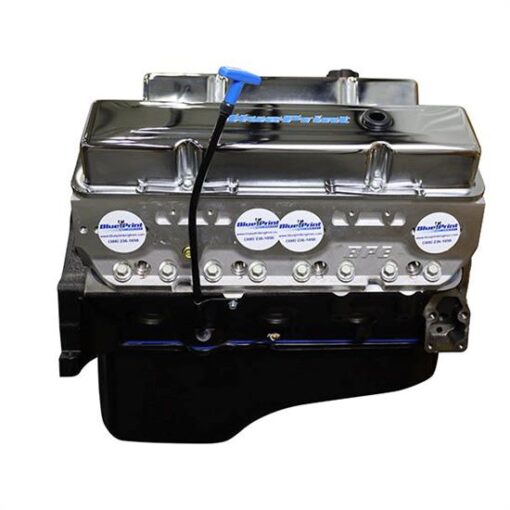

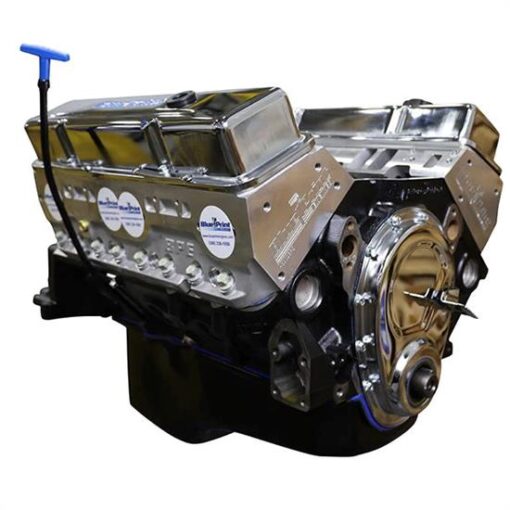

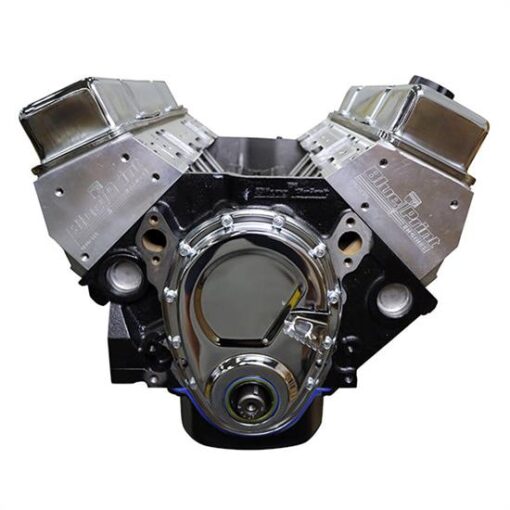

BluePrint Engines BP3505CT S/B Chevy 350 Crate Engine, Longblock

BluePrint Engines New Block Casting 350 CI Iron Block Dyno Tested Small Block GM Style HP And Torque: 390 HP / 410 Ft Lbs Compression Ratio: 9.2:1 Aluminum Heads, Hydraulic Roller Cam, Cast Iron Crank, and Hypereutectic Pistons Manufactured and Machined in the USA! BLOCK:NEW BluePrint Cast Iron BlockManufactured and Machined in the USA!4-Bolt Main4.000" Bore1-Piece Rear Main SealMech fuel pump provision: YesPassenger Side DipstickDrilled and tapped for clutch linkage ROTATING ASSEMBLY:Cast Iron Crankshaft3.480" StrokeForged 5.700" connecting rodsHypereutectic pistonsInternal Front/ External Rear engine balance CYLINDER HEADS:BluePrint Aluminum Cylinder Heads – H8002K64cc chamber2.02" intake/1.60" exhaust valves195cc intake/75cc exhaust runners CAM SPECS:Cam Type: Roller.495 Intake .502 Exhaust220 Intake / 224 Exhaust duration@ .050 – 114 degree lobe separation IGNITION TIMING:32 Degrees Total at 3500 RPM ALSO INCLUDES:Valve coversOil panTiming coverDyno test results shipped with engine WARRANTY:30 month / 50,000 mile

Specifications

• Engine Displacement: 5.7 liters
• Compression Ratio: 9.2:1
• Camshaft Type: Hydraulic Roller Tappet
• Cylinder Head Material: Aluminum
• Camshaft Duration (.050 in): 220° intake / 224° exhaust
• Camshaft Lift (in): .528 intake / .536 exhaust
• Bore x Stroke (in): 4.040" x 3.480"
• Carburetor Included: No
• Intake Manifold Included: No
• Distributor Included: No
