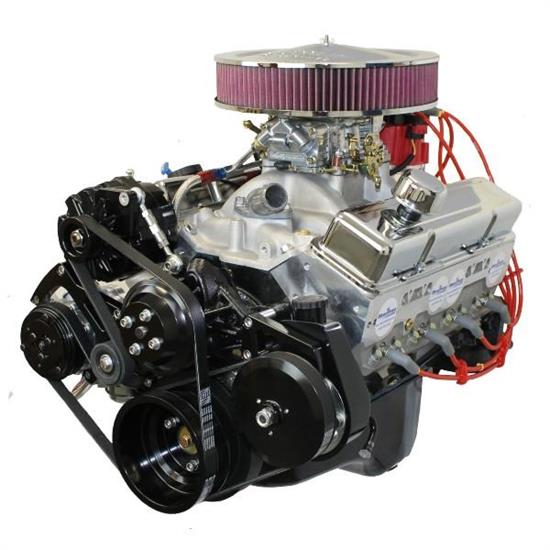

BluePrint BP3505CTCK 350CI Deluxe Crate Engine, Longblock, Carb

HP And Torque: 390 HP / 410 FT LBS Compression Ratio: 9.2:1 Aluminum Heads Hydraulic Roller Cam Cast Iron Crankshaft Hypereutectic Pistons BLOCK:NEW BluePrint Cast Iron BlockManufactured and Machined in the USA!4-Bolt Main4.000" Bore1-Piece Rear Main SealMech fuel pump provision: YesPassenger Side DipstickDrilled and tapped for clutch linkage ROTATING ASSEMBLY:Cast Iron Crankshaft3.480" StrokeForged 5.700" connecting rodsHypereutectic pistonsInternal Front/ External Rear engine balance CYLINDER HEADS:BluePrint Aluminum Cylinder Heads – H8002K64cc chamber2.02" intake/1.60" exhaust valves195cc intake/75cc exhaust runners CAM SPECS:Cam Type: Roller.495 Intake .502 Exhaust220 Intake / 224 Exhaust duration@ .050 – 114 degree lobe separation IGNITION TIMING:32 Degrees Total at 3500 RPM ALSO INCLUDES:Valve coversOil panTiming coverAluminum intakeHEI distributorSpark plugs and wires600 cfm carburetorMechanical fuel pumpWaterneck and ThermostatDyno test results shipped with engineFront Accessory Drive with Water Pump, A/C Compressor, Alternator, andPower Steering Pump (Does not fit Corvette) WARRANTY:30 month / 50,000 mile

Highlights

• HP And Torque: 390 HP / 410 FT LBS
• Compression Ratio: 9.2:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Iron Crankshaft

Specifications

• GTIN Code: 887753841193
• MFG. Part #: BP3505CTCK
• Brand: BluePrint Engines

Emissions Notice

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine
